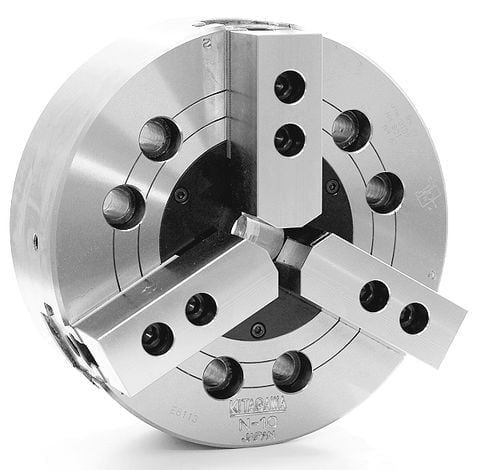

The Kitagawa N Series 3-Jaw Hydraulic Chuck (models N-04, N-05, N-06, N-08, N-10, N-12, N-15, N-18, N-21, N-24) is manufactured by Kitagawa, Japan.
This is a standard hydraulic 3-jaw chuck, ideal for flange turning applications, providing high clamping force and secure holding. The chuck design minimizes centrifugal force during high-speed machining, ensuring excellent stability and precision.
Features of Kitagawa N Series 3-Jaw Hydraulic Chuck:
Standard 3-jaw hydraulic chuck with a closed through-hole design — ideal for flange turning with high clamping force for secure holding.
Manufactured from refined alloy steel; all working surfaces are hardened and precision-ground for long-lasting accuracy and durability.
Wedge-type power transmission ensures stable performance during high-speed operations.
Provides up to 20% higher clamping force and bore capacity compared to conventional chucks.
Low centrifugal force during high-speed machining improves machining accuracy and reduces wear.
Supplied with mounting bolts, T-nuts, jaw mounting bolts, as well as chuck wrench and operating wrench.
Made in Japan – renowned for high quality, long service life, and reliability.
Specifications by Model:
N-04: 110 mm hydraulic 3-jaw standard chuck with closed through-hole. Max speed: 6000 rpm.
N-05: 135 mm hydraulic 3-jaw standard chuck with closed through-hole. Max speed: 5270 rpm.
N-06: 165 mm hydraulic 3-jaw standard chuck with closed through-hole. Max speed: 6000 rpm.
N-08: 210 mm hydraulic 3-jaw standard chuck with closed through-hole. Max speed: 4760 rpm.
N-10: 254 mm hydraulic 3-jaw standard chuck with closed through-hole. Max speed: 4010 rpm.
N-12: 304 mm hydraulic 3-jaw standard chuck with closed through-hole. Max speed: 3380 rpm.
N-15: 381 mm hydraulic 3-jaw standard chuck with closed through-hole. Max speed: 3040 rpm.
N-18: 450 mm hydraulic 3-jaw standard chuck with closed through-hole. Max speed: 2710 rpm.
N-21: 530 mm hydraulic 3-jaw standard chuck with closed through-hole. Max speed: 1940 rpm.
N-24: 610 mm hydraulic 3-jaw standard chuck with closed through-hole. Max speed: 1760 rpm.
