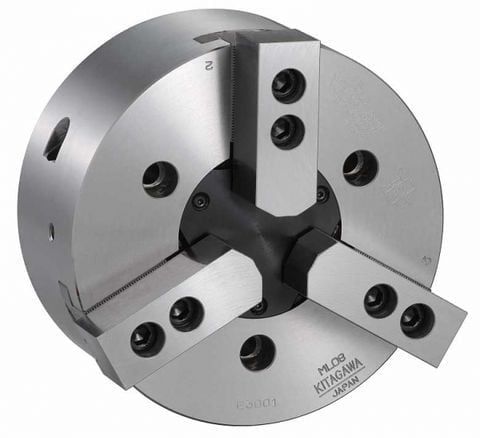

The Kitagawa ML Series Hydraulic 3-Jaw Chuck, including models ML06 and ML08, is manufactured by Kitagawa, Japan.
This series features a hydraulic 3-jaw design with long jaw stroke and a closed through-hole, suitable for use with both hard and soft jaws. The ML Series is ideal for pipe cutting and flange machining applications.
Features of Kitagawa ML Series:
Hydraulic 3-jaw chuck design with long jaw stroke and closed through-hole.
Compatible with both hard and soft jaws.
Ideal for pipe cutting and flange machining.
Made from high-quality refined alloy steel; all working surfaces are hardened, and the base is precision-machined for durability and repeatable accuracy.
Features a three-wedge power-assist mechanism for high-speed machining.
Provides up to 20% higher clamping force and through-hole capacity compared to standard chucks.
Low centrifugal force at high rotational speeds for stable operation.
Supplied with mounting bolts, T-nuts, jaw mounting bolts, and drum/installation wrenches.
Made in Japan – ensuring high quality, durability, and precision.
Model Specifications:
ML06: Hydraulic 3-jaw chuck Ø169 mm, jaw stroke 40 mm, closed through-hole, suitable for both hard and soft jaws. Ideal for pipe cutting and flange machining. Maximum speed: 3800 rpm.
ML08: Hydraulic 3-jaw chuck Ø215 mm, jaw stroke 50 mm, closed through-hole, suitable for both hard and soft jaws. Ideal for pipe cutting and flange machining. Maximum speed: 3000 rpm.
