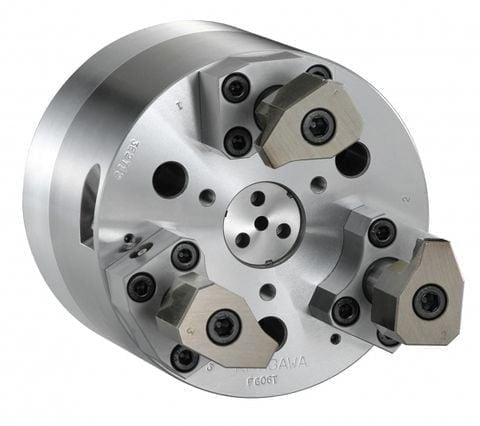

The Kitagawa FG Series 3-Jaw Chucks include models FG05, FG06, FG08, FG10, and FG12, manufactured by Kitagawa, Japan.
These 3-jaw chucks are specially designed for mold clamping and are ideal for thin-walled workpieces. They feature a balancing mechanism that ensures a firm grip on parts with varying thickness.
Features of Kitagawa FG Series 3-Jaw Chuck:
A 3-jaw chuck specially designed for mold clamping, ideal for thin-walled workpieces, featuring a balancing mechanism to securely hold components with uneven thickness.
Manufactured from high-quality refined alloy steel; all working surfaces are hardened, and the precision-machined base ensures long service life and repeatable accuracy.
Provides up to 20% higher speed, clamping force, and through-hole size compared to conventional chucks.
Supplied with mounting bolts, T-nuts, jaw mounting bolts, as well as a drum wrench and mounting wrench.
Made in Japan – high quality and superior durability.
Offers high repeatability and draw-back action for external clamping.
Ensures high clamping stability and long-term accuracy retention.
Model Specifications:
FG05: 3-jaw chuck Ø135 mm, specially designed for mold clamping with deformation reduction. Maximum speed: 4000 rpm.
FG06: 3-jaw chuck Ø165 mm, specially designed for mold clamping with deformation reduction. Maximum speed: 4000 rpm.
FG08: 3-jaw chuck Ø210 mm, specially designed for mold clamping with deformation reduction. Maximum speed: 3500 rpm.
FG10: 3-jaw chuck Ø254 mm, specially designed for mold clamping with deformation reduction. Maximum speed: 3500 rpm.
FG12: 3-jaw chuck Ø304 mm, specially designed for mold clamping with deformation reduction. Maximum speed: 3000 rpm.
